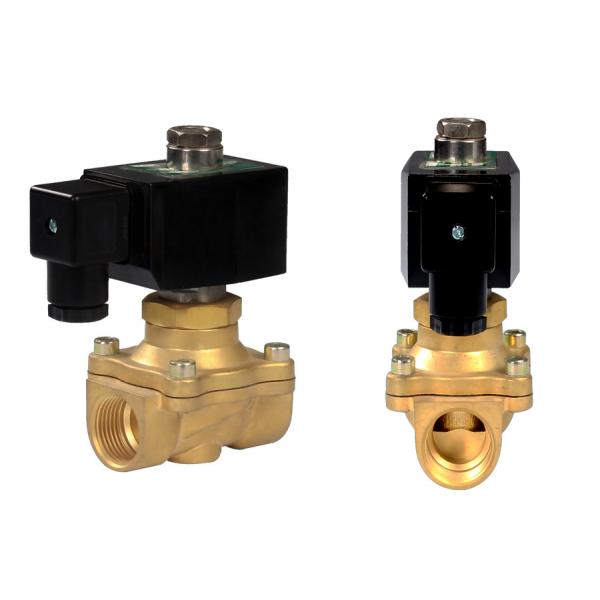

Water Solenoid Valve Normally Open Closed Open 145 PSI FKM Viton 3 4 inch
Water Solenoid Valve Normally Open Closed Open 145 PSI FKM Viton 3 4 inch
1. How To Order
Model Orifice Thread Body Seal Coil Voltage
2W11 12, 15, 20, G- G B-Brass N-NBR Y32B 1-AC220V 2-DC24V
2W21 25, 32, 40, N- NPT S-SS304/316 E-EPDM Y42B 3-AC110V 4-DC12V
2W31 50(mm) V-FRM/Viton Y52B 5-AC24V
2W41 S51B
2W12 S91B
SD01B
2W11 2 Inch Electric Water Valve Normal Closed Open 145 PSI FKM Viton
2W21 2 port 24 Volt Solenoid Valve Water Normal Closed 145 PSI NBR Seal for Low Pressure System
2W31 2 way solenoid valve direct lifting diaphragm 0.0~1.0Mpa, S91B/SD01B DIN coil 36W DC
2W41 2 port solenoid valve direct lifting diaphragm 0.0~1.0Mpa, S91B/SD01B DIN coil 6W DC low consumption
2W12 2 port normal opened solenoid valve direct lifting diaphragm 0.0~1.0Mpa, Y32B/Y42B iron shell coil
Example : 2W11 50NBV S11H2: normal closed, 50mm orifice, NPT2", brass body, Viton seals, DC24V.
2. Solenoid Valve Specification
Medium: Air, gas, Water, oil etc. Temperature: PTFE seal:-30℃~392℃(14℉~176℉)
Orifice: 12, 15, 20, 25(mm) EPDM seal:-30℃~120℃(-22℉~248℉)
Viton seal:-30℃~150℃(-22℉~302℉)
PTFE seal:-60℃~200℃(-76℉~392℉)
Pressure: 2W:0.0MPA~1.0MPA (0PSI~145PSI) Port thread: NPT, G Thread
Port size: 3/8”, 1/2”, 1", 1-1/4", 1-1/2", 2"
Voltage: DC:12V, 24V, Coils: Y32B, 40VA(AC),18W(DC),IP65,100%ED
AC:24V, 110V, 120V, 220V, 240V Y42B, 50VA(AC),20W(DC),IP65,100%ED
Tolerance: ±10% Y52B, 220VA(AC),18W(DC),IP65,100%ED
S51B, 30VA(AC),24W(DC),IP65,100%ED
S91B, 22VA(AC),17W(DC),IP65,100%ED
SD01B, 28VA(AC),36W(DC),IP65,100%ED
Material: Body- Brass, stainless steel, Aluminum, Character: 1. Direct Lifting diaphragm
Seal- VITION, NBR, EPDM, PTFE 2. 0 Psi started
Armature- SS304 3. low pressure system usage
Plunger- SS430F 4. air, gas, water, oil fluid.
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3. Detailed Information
2W11 2 Inch Electric Water Valve Normal Closed Open 145 PSI FKM Viton
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(40VA) | DC(18W) |
| 2W1112XXX | 3/8" | 12 | 4.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Brass | NBR EPDM Viton (FKM) | Y32B |
| 2W1115XXX | 1/2" | 15 | 4.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Y32B |
| 2W1120XXX | 3/4" | 20 | 9.3 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Y32B |
| 2W1125XXX | 1" | 25 | 12 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Y32B |
| | AC(50VA) | DC(20W) | |
| 2W1132XXX | 1-1/4" | 32 | 24 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Y42B |
| 2W1140XXX | 1-1/2" | 40 | 29 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Y42B |
| 2W1150XXX | 2" | 50 | 48 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Y42B |
2W21 2 port pipeline solenoid valve direct lifting diaphragm 0.0~1.0Mpa, S51B/SD01B DIN coil 24W DV
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(30VA) | DC(24W) |
| 2W2112XXX | 3/8" | 12 | 4.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Brass | NBR EPDM Viton (FKM) | S51B |
| 2W2115XXX | 1/2" | 15 | 4.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S51B |
| 2W2120XXX | 3/4" | 20 | 9.3 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S51B |
| 2W2125XXX | 1" | 25 | 12 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S51B |
| | AC(28VA) | DC(36W) | |
| 2W2132XXX | 1-1/4" | 32 | 24 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SD01B |
| 2W2140XXX | 1-1/2" | 40 | 29 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SD01B |
| 2W2150XXX | 2" | 50 | 48 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SD01B |
2W31 2 way solenoid valve direct lifting diaphragm 0.0~1.0Mpa, S91B/SD01B DIN coil 36W DC
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(28VA) | DC(36W) |
| 2W3132XXX | 1-1/4" | 32 | 24 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Brass | NBR EPDM Viton (FKM) | SD01B |
| 2W3140XXX | 1-1/2" | 40 | 29 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SD01B |
| 2W3150XXX | 2" | 50 | 48 | 0.0Mpa | 1.0Mpa | 1.0Mpa | SD01B |
2W41 2 port pipeline solenoid valve direct lifting diaphragm 0.0~1.0Mpa, S91B/Y52B coil
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(30VA) | DC(24W) |
| 2W2112XXX | 3/8" | 12 | 4.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Brass | NBR EPDM Viton (FKM) | Y52B |
| 2W2115XXX | 1/2" | 15 | 4.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Y52B |
| 2W2120XXX | 3/4" | 20 | 9.3 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Y52B |
| 2W2125XXX | 1" | 25 | 12 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Y52B |
2W12 2 port normal open solenoid valve direct lifting diaphragm 0.0~1.0Mpa, S51B/Y42B wire lead coil
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(30VA) | DC(24W) |
| 2W1212XXX | 3/8" | 12 | 4.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Brass | NBR EPDM Viton (FKM) | S51B |
| 2W1215XXX | 1/2" | 15 | 4.5 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S51B |
| 2W1220XXX | 3/4" | 20 | 9.3 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S51B |
| 2W1225XXX | 1" | 25 | 12 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S51B |
| | AC(50VA) | DC(20W) | |
| 2W1232XXX | 1-1/4" | 32 | 24 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Y42B |
| 2W1240XXX | 1-1/2" | 40 | 29 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Y42B |
| 2W1250XXX | 2" | 50 | 48 | 0.0Mpa | 1.0Mpa | 1.0Mpa | Y42B |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
7. Why US?
Our core advantages to pursue Your Success.
1.Reliable Quality (We are OEM supplier of ASCO and Parker)
2.Over 20 years solenoid valve design and customize experience.
3.Mark Service(both Product and packing wiht your design and logo)
4.Related Supply Service, including Festo, SMC, , Airtac, Shako.
5.Good English communication
6.Opening Mind to growing with clients for different products.
(please continue reading to find out more detail)
